Resilient floor coverings include all the products that have the characteristic of resilience, or 'bounce back', such as vinyl, rubber and linoleum.

They are supplied either as sheet products, tiles or planks.

Depending on the end use of the floor, resilient coverings can be loose laid or stuck down with an adhesive.

Set out below are the main tools used to install resilient floor coverings.

Techniques for using these tools, as well as instructions on how to install the different resilient products, are described in the specialist installation units on this website.

Marking

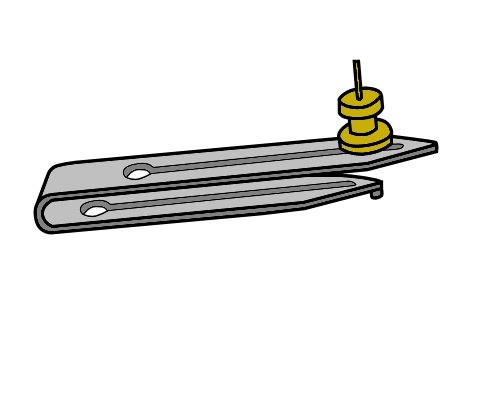

Recess scriber
For scribing the line of a seam to make sure the two edges match exactly.

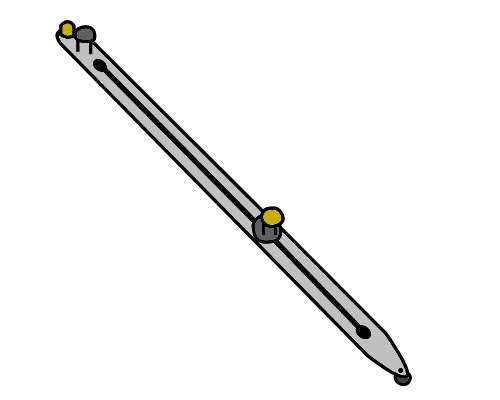

Scribing bar
For scribing the cut edges of a sheet or tile where it fits against a wall or around an object.

Dividers
An alternative to using a scribing bar when the gap is very small.

Cutting

Edge trimmer
For trimming a straight edge along a sheet.

Spatula knife
For cutting and trimming the welding rod in a seam.

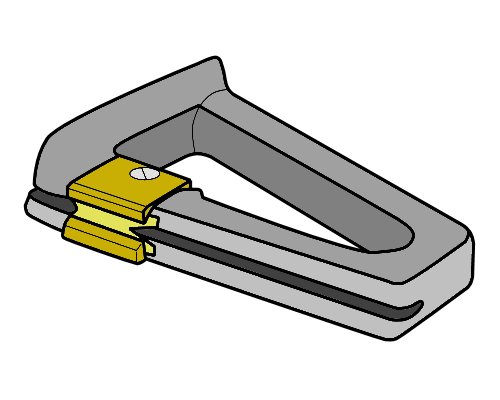

Wall trimmer
For trimming off excess material against the wall.

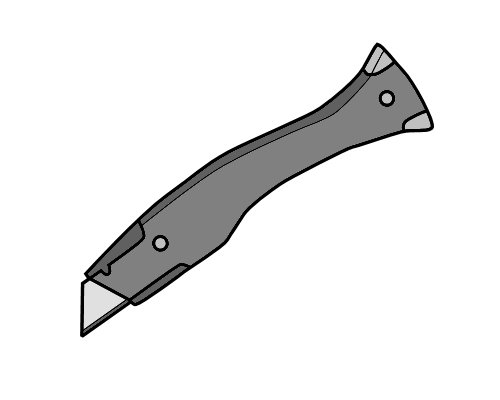

Utility knife
For cutting and shaping floor coverings, rubber mouldings and other materials.

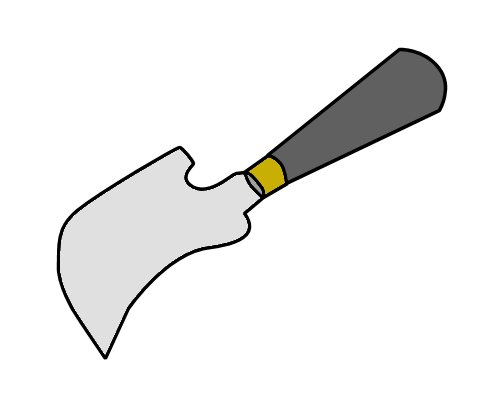

Lino knife
For cutting linoleum and other heavy resilient coverings.

Seaming

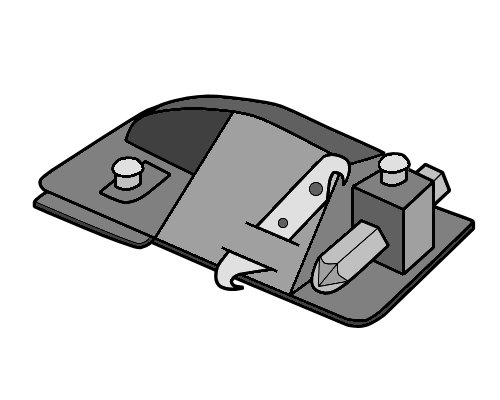

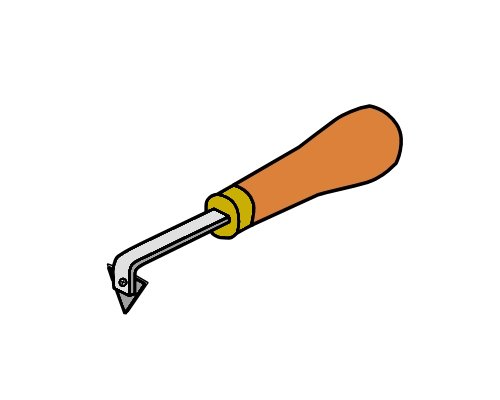

Hand grooving tool
For cutting a groove along the seam, prior to welding the seam.

Power groover
A more powerful version of the hand groover.

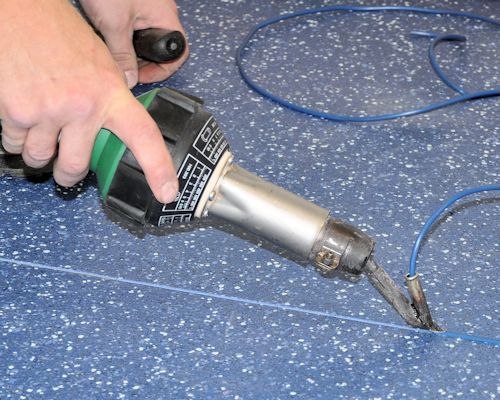

Heat welding gun
Used to weld seams by melting a welding rod in the groove.

Fitting, sticking down and rolling

Hot air gun
For heating and softening vinyl to make it more flexible when fitting it.

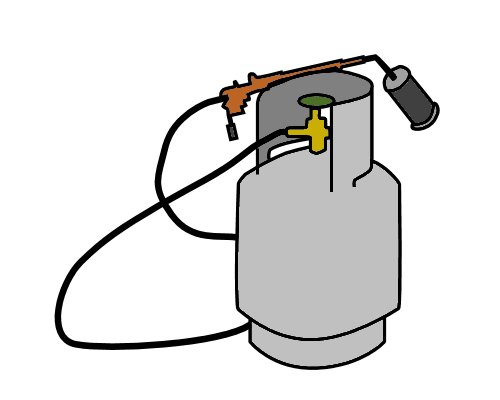

Gas bottle and gun
A more powerful alternative to using a hot air gun.

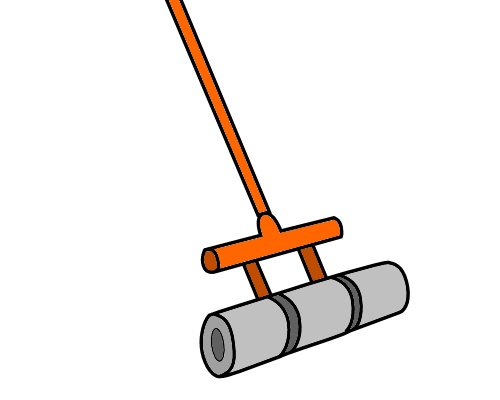

Roller
For rolling out the floor covering after laying it in position.

Rubber mallet
For fitting floor coverings in hard-to-reach areas when a roller is too awkward.

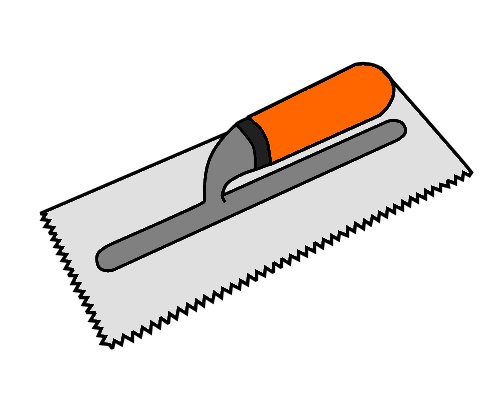

Serrated trowel
For spreading adhesive on the subfloor prior to laying the floor covering.

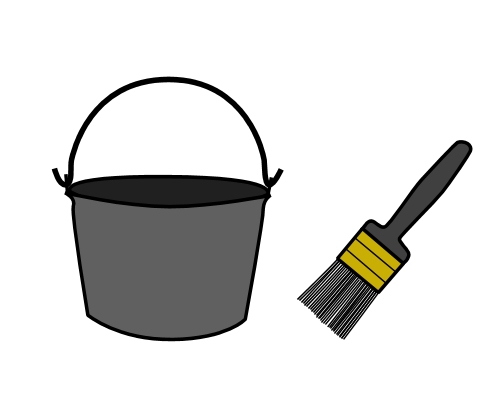

Paint brush and bucket
For applying contact adhesive to skirtings and coved materials.
